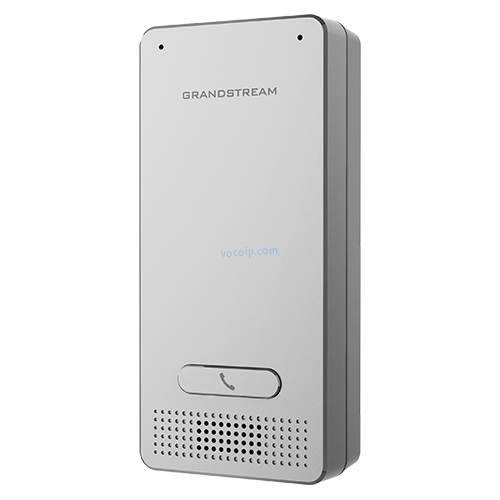

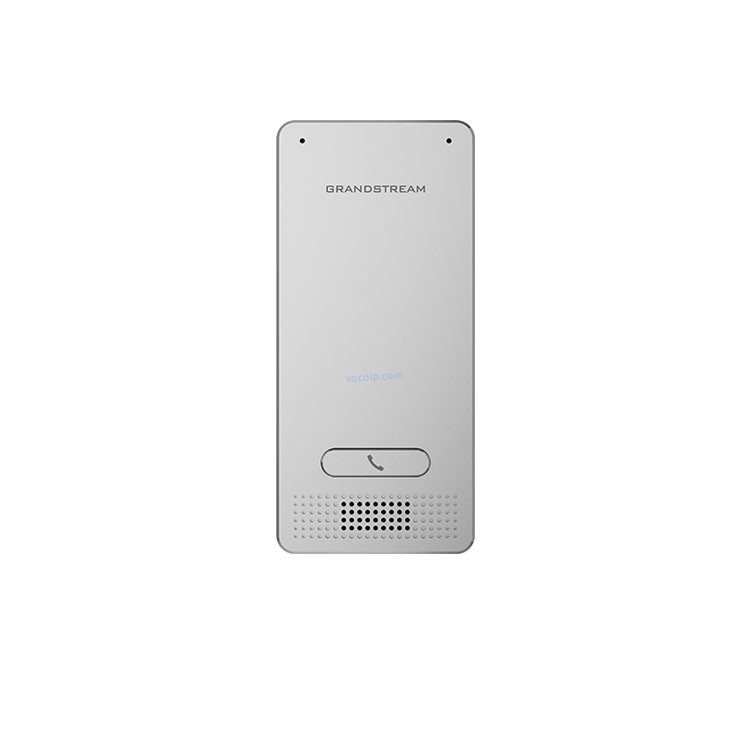

GDS3702 SIP語音對講
相關資源下載GDS3702 技術參數彩頁
- 型號： GDS3702
- 品牌： Grandstream
- PK參數：
相關資源下載
| 快速定位相關產品 |
IP電話機 多媒體視頻話機:GXV3480 GXV3450 GXV3470 GXV3380 GXV3370 GXV3350; GRP260x運營級別話機:GRP2601 GRP2602 GRP2603 GRP2604; GRP26xx中高端IP電話:GRP2612 GRP2612P GRP2612W GRP2613 GRP2614 GRP2615 GRP2616 GRP2624 GRP2634 GRP2670 GRP2636 GRP2650; 普及型IP電話: GXP1610 GXP1615 GXP1620 GXP1625 GXP1628 GXP1630; GXP21xx中高端IP電話：GXP2170 GXP2160 GXP2140 GXP2130 GXP2135 ; |
SIP服務器 |
語音網關 高密度語音網關: GXW4216 GXW4224 GXW4232 GXW4248; 數字中繼網關: GXW4501 GXW4502 GXW4504; |
視頻會議&會議電話 MCU: IPVT10; |
管理平臺 |
數通產品-HAN |
數通產品-潮流網絡 企業無線AP:GWN7664 GWN7664LR GWN7660 GWN7662 GWN7660LR GWN7630 GWN7630LR GWN7605 GWN7605LR GWN7625 GWN7615 GWN7624 GWN7602 網絡交換機:GWN7801 GWN7801P GWN7802 GWN7802P GWN7803 GWN7803P GWN7700 GWN7700P GWN7701 GWN7701P GWN7701PA GWN7700M GWN7701M GWN7702 GWN7702P GWN7703 |
AIOT物聯網 門禁: GDS3710 GDS3705 GSC3570 GDS3712 GDS3702; SIP揚聲器:GSC3510 GSC3505 GSC3516 GSC3506; |
Network 10M/100M Auto-sensing
PoE | PoE IEEE 802.3af Class3 |
Supply Voltage | 12VDC /1A (AC power adapter not included) |
SIP/VoIP Support | Yes, broad interoperability |
Voice Codecs | G.711μ/a, G.722, DTMF(RFC2833, SIP INFO), AEC, ANC |
Audio Input | Built-in microphones up to 1.5m |
Audio Output | HD loudspeaker 2W, up to 3m |
Input | 2 Optocoupler Input,Vin<15V, for door sensor or other low voltage device |
Output | 2 Relay, 125VAC/0.5A or 30VDC/2A, Normal Open or Normal Close, for electric lock, light switch or other relative high voltage device |
Waterproof Certificate | IP66 (EN60529) |
Vandal Resistance | IK10 (IEC62262) |
Temperature and Humidity | Operation: -30°C to 60°C; Storage: -35°C to 60°C Humidity: 10% to 90% Non-condensing |
Mounting | On-Wall, In-Wall (Mount Kit required, Sold separately) |
Dimension (HxWxD) and Weight | On-Wall: 173mm x 80mm x 36mm; In-Wall: 217mm x 120mm x 11.6mm; Unit Weight: 672 gram |
Compliance | CE, FCC, IC, RCM, UKCA |
